Prepare front spoiler

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Clean adhesive area on bumper panel using CLEANING AGENT R2 .

Lay out clamp, adhesive tape and rigid foam block (approx. 105 mm high) for fixing in place.

Clean contact surface (2) of front spoiler.

Apply adhesive bead (Ø = 5 mm) according to dimension (A) to the contact surface (2) of the front spoiler.

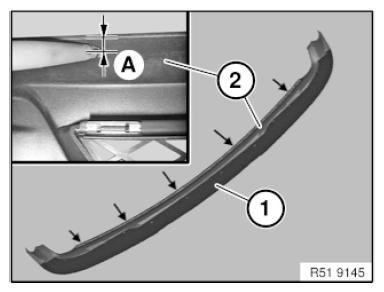

Fig 1: Identifying Adhesive Bead Applying Area On Front Spoiler

Courtesy of BMW OF NORTH AMERICA, INC.

A = 15 mm from edge of spoiler
