51 11 370 Removing and installing/replacing front left or right trim strip

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Build date up to 07/2012:

Tape off bumper panel (2) in the working area.

Unclip trim strip (1) from the bumper panel (2) using special tool 00 9 317 and remove to the front.

Installation note:

Latch mechanisms on trim strip (1) must not be missing or damaged.

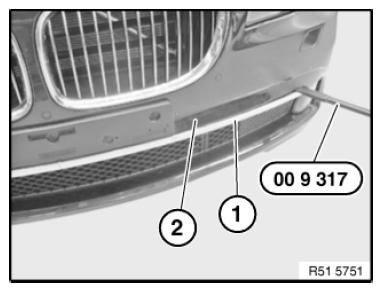

Fig 1: Removing Trim Strip From Bumper Trim Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Version after 07/2012:

Tape off bumper panel in the working area.

Unclip trim strip (1) from the bumper panel using special tool 00 9 317 and remove to the front.

Installation note:

First feed in trim strip (1) with guide (2) into bumper panel, then clip in.

Latch mechanisms on trim strip (1) must not be missing or damaged.

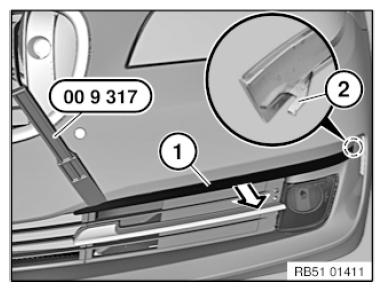

Fig 2: Unclip Trim Strip From Bumper Panel Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.
