51 11 183 Removing and installing/replacing ornamental grille for bumper panel (side): Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Unclip ornamental grille (2) from latch mechanisms (1) to the front.

Installation note:

Latch mechanisms (1) must not be damaged.

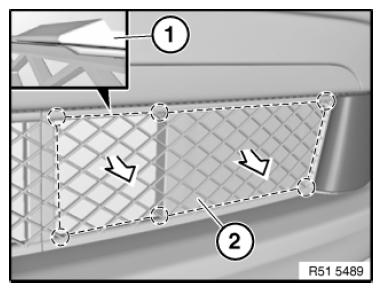

Fig 1: Removing Ornamental Grille With Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
