Mounting suction cup lifters on windscreen or rear window
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

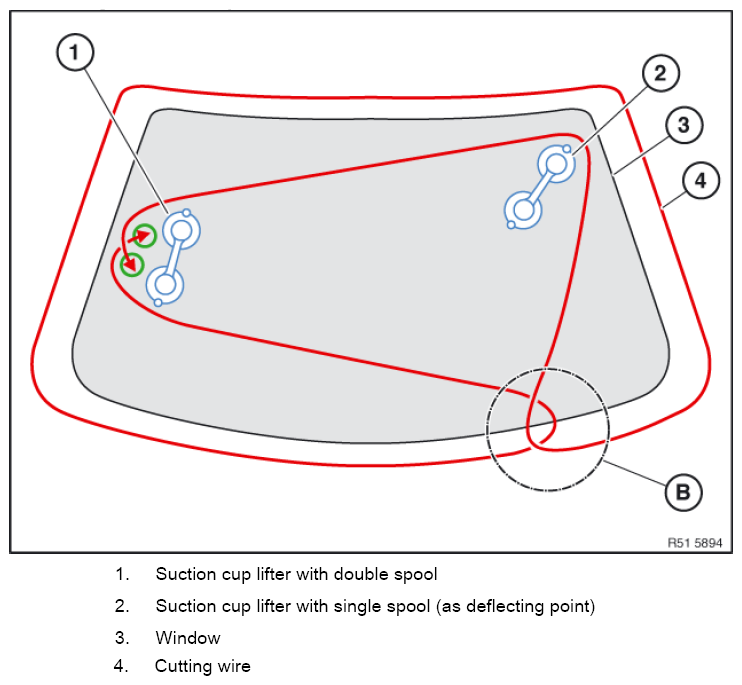

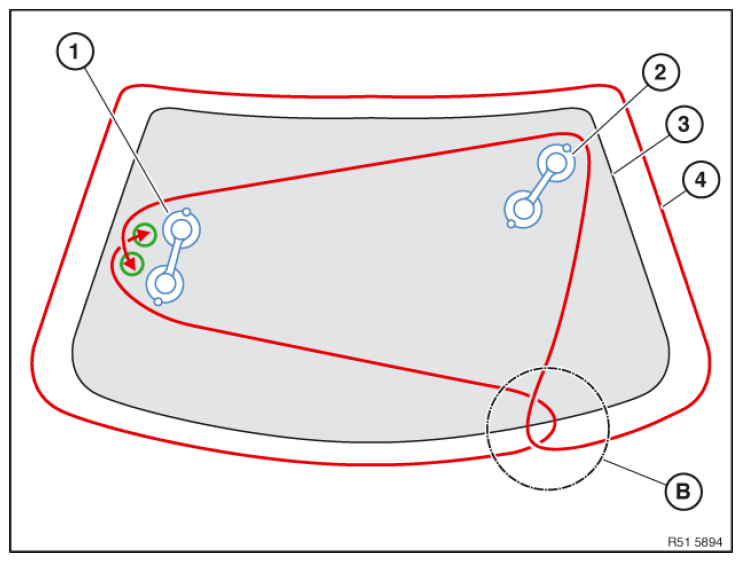

- Secure position of lifting jacks as shown (view from outside):
- Suction cup lifter with double spool
- Suction cup lifter with single spool (as deflecting point)
- Window
- Cutting wire
NOTE:
Optimum cutting is guaranteed when the cutting wire is at an acute angle to the adhesive bead. There is a risk of the cutting wire breaking if the angle is too obtuse.
The suction cup lifter (2) is used as the deflection point to achieve the corresponding angle.
Depending on the window glass version and the effort applied during cutting, it may be necessary to change the deflection point during cutting.
The suction cups without a spool can even be used as the deflection point.
The suction cup lifter (2) is used as the deflection point to achieve the corresponding angle.
Depending on the window glass version and the effort applied during cutting, it may be necessary to change the deflection point during cutting.
The suction cups without a spool can even be used as the deflection point.
