3.10 Adjusting the window glass

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Mounting Window Glass Using Suction Lifter (51 3 010)

Courtesy of BMW OF NORTH AMERICA, INC.

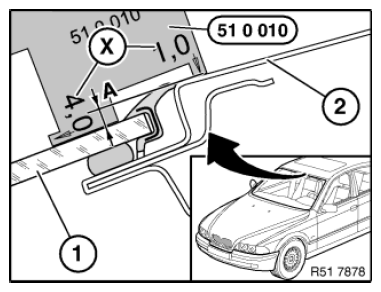

To avoid wind noise, the front and rear windows (1) must be lower than the roof outer skin (2).

Check height of the windscreen or rear window using special tool 51 0 010 .

Dimension (A) of window glass offset, refer to vehicle-specific repair instructions.

X = measurement stages 1... 4 mm
