Expanding foam tape
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Observe NOTES on component-bonding with adhesive tape!
If necessary, renew RESILIENT SEALING TAPE for VIN number inspection glass on windscreen.

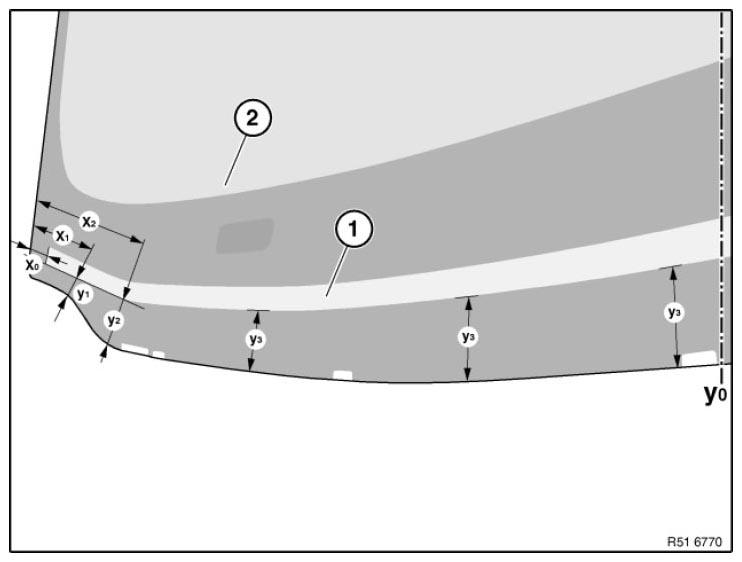

| Apply dimensions to right windscreen half in mirror-inverted fashion | |||
|---|---|---|---|
| All dimensions in mm | |||
| x0 = | 50 | Y0 = | Windscreen center |
| x1 = | 100 | y1 = | 25 |
| x2 = | 200 | y2 = | 55 |
| y3 = | 60 | ||

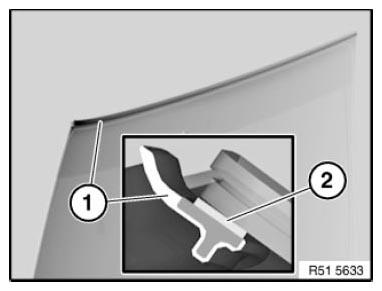

Install the COVER / RUBBER FRAME (1) for the windscreen.
