Depending on version

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Tape off body in area of piercing point with fabric adhesive tape.

Push wire from ROLL OUT 2000  along line (1) through adhesive bead (2).

For details on how to proceed, refer to: WINDOW REMOVAL WITH "ROLL OUT 2000" .

Lift out windscreen with suction cup (BMW Order number: 81 64 2 184 377).

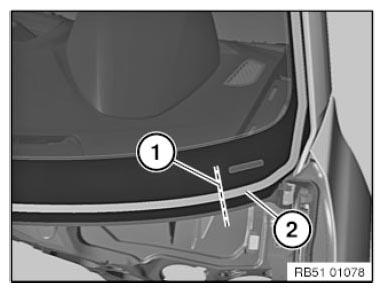

Fig 1: Identifying Adhesive Bead And Line
G08508334Courtesy of BMW OF NORTH AMERICA, INC.
