Adjusting pre-tension on windscreen
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

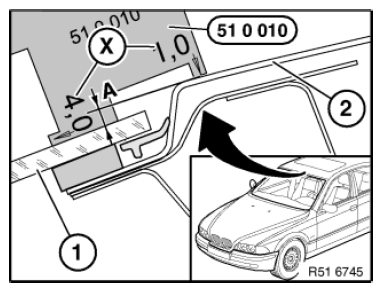

In order to avoid wind noises, windscreen (1) must be lower than roof outer skin (2).
Position special tool 51 0 010 in middle of vehicle depending on measurement (A) and check underprotrusion of windscreen (1).
A = 4 mm without HUD
A = 3.5 mm with HUD
A = 3 mm with HUD and acoustics
X = measurement stages 1... 4 mm
Version with HUD only:
Check HUD FUNCTIONS again and if necessary ADJUST .
Only with camera-based driver support systems:
Carry out camera calibration via diagnosis system.
Under Service Functions menu:
- Body
- Lane departure warning
- Calibrate camera
- Lane departure warning
