51 47 315 Removing and installing/replacing front carpet for passenger compartment

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove HEATING AND AIR-CONDITIONING UNIT
Remove both front seats. See FRONT SEAT, DRIVER'S SIDE and FRONT SEAT, PASSENGER SIDE .
Remove COMPLETE ACCELERATOR PEDAL MODULE

Remove front floor trim panel (1) towards rear/top and if necessary feed out cable.

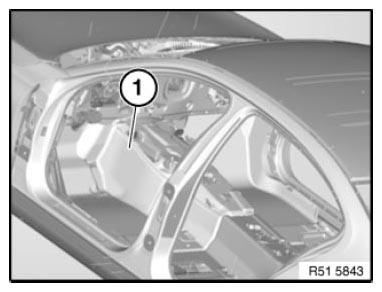

Fig 1: Identifying Front Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Apertures (1) serve as fixing points when fitting the front floor trim panel (2).

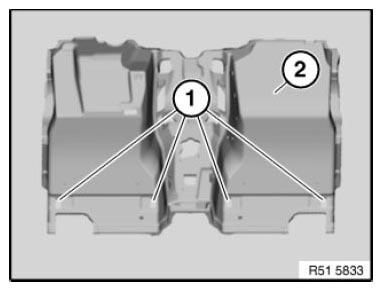

Fig 2: Identifying Apertures And Front Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
