51 47 101 Removing and installing/replacing luggage compartment floor trim panel

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Open rear lid.

Fold back luggage compartment floor trim panel (1) as pictured.

Release plastic nuts (2).

Remove luggage compartment floor trim panel (1) in direction of arrow.

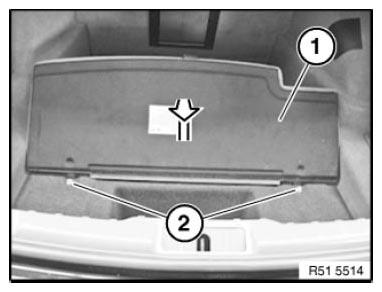

Fig 1: Removing Luggage Compartment Floor Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.
