67 62 020 Removing and installing/replacing flat motor for rear left or right power window unit: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR POWER WINDOW UNIT

Release screws (1) and detach flat motor (2) from power window unit.

Installation:

Retaining pins (3) must not be released!

Fig 1: Identifying Power Window Unit Flat Motor With Mounting Screws And Pins

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: To ensure tension-free installation of flat motor, observe the specified screwing sequence.

Tighten first screw (1), then screw (2) and finally screw (3).

Tightening torque 67 62 1AZ .

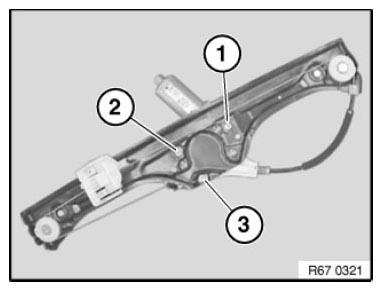

Fig 2: Identifying Power Window Unit Flat Motor With Mounting Screws

Courtesy of BMW OF NORTH AMERICA, INC.
