51 14 010 Removing and installing/replacing rear BMW badge

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: The NOTES on component bonding with double-sided adhesive tape serve as the basis for this repair instruction and must be observed without fail.

Carefully heat BMW badge (1) with hot air blower and lever out with special tool 00 9 322 .

Fig 1: Removing BMW Badge Using Special Tool (00 9 322)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Pull liner* off adhesive tape (1).

Position plate over guides (2 and 3) and press down firmly.

* Liner is the protective film on a new badge.

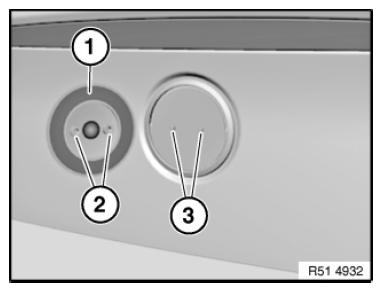

Fig 2: Identifying Adhesive Tape And Badge Over Guides

Courtesy of BMW OF NORTH AMERICA, INC.
