51 14 000 Removing and installing/replacing front BMW badge

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!

To avoid damaging the paintwork on the engine compartment lid, tape off edge areas (1) to sides of guide pins.

So as not to subject the BMW badge to excessive deformation, lever out the badge with special tool 00 9 326 at guide pins (2).

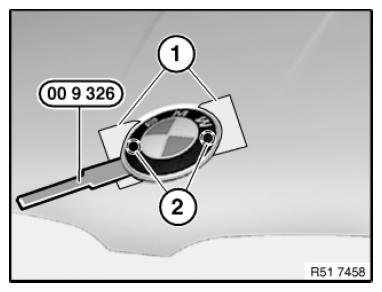

Fig 1: Removing BMW Badge Using Special Tool (00 9 326) At Guide Pins

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

The following components must not be damaged or missing, replace if necessary:

Badge
Guide pins
Grommets
Adhesive tape as paint protection

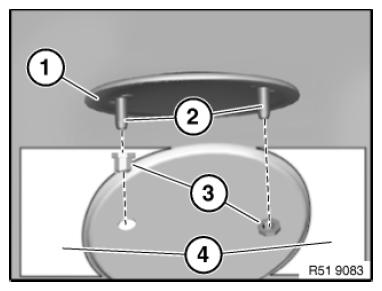

Fig 2: Identifying Badge, Guide Pins, Grommets And Adhesive Tape
Courtesy of BMW OF NORTH AMERICA, INC.
