24 00 043 Installing replacement transmission (GA6HP26Z)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Drain automatic transmission fluid at oil drain plug.

Tightening torque 24 11 2AZ .

IMPORTANT: After completing the tasks, program TCU control unit.

Recycling:

Catch and dispose of escaping transmission fluid.

Observe country-specific waste-disposal regulations.

IMPORTANT:

Before installing replacement transmission, always flush TRANSMISSION FLUID COOLER TOGETHER WITH LINES .
After completion of work, CHECK TRANSMISSION FLUID LEVEL .
Use only the approved transmission fluid: Shell M-1375.4 ; BMW part number 83 22 0 142 516 ; 20 liters

Failure to comply with this requirement will result in serious damage to the automatic transmission

Replacement transmission is supplied filled with transmission fluid

Necessary preliminary tasks:

Remove AUTOMATIC TRANSMISSION

Modify gearshift lever (1).

Tightening torque 24 51 1AZ .

Modify clip (2) for cable.

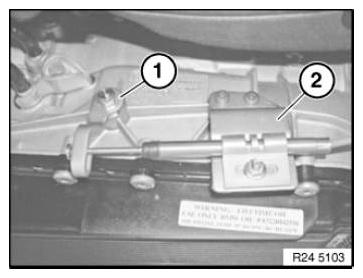

Fig 1: Identifying Gearshift Lever And Cable Clip

Courtesy of BMW OF NORTH AMERICA, INC.

Modify TRANSFER CASE .

Modify transportation retainers.

Convert all cable holders.

Convert all seal plugs.

Modify protective cap on output shaft.

IMPORTANT: After removing transportation lock, secure torque converter against slipping out.

Transmission identification:

refer to BMW Parts Department.
On type plate

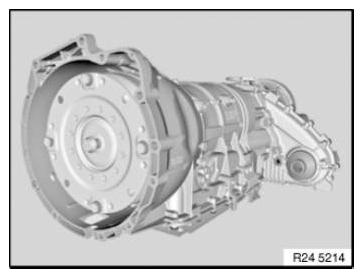

Fig 2: View Of Transmission
Courtesy of BMW OF NORTH AMERICA, INC.
