24 00 018 Adjusting gear lever (parking lock emergency release)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Check cable for ease of movement.
Move gear selector switch to "P" position. Control for emergency release must not be actuated.

Unfasten nut.

Disconnect cable (1).

Installation:

Release nut
Adjust cable by means of holder (2) until spacing A ≥ 1 mm is obtained.
Tighten down nut

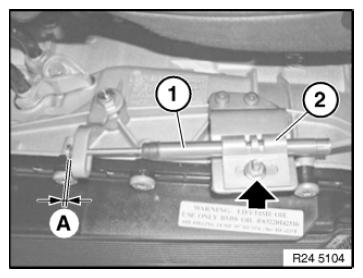

Fig 1: Locating Cable Nut
Courtesy of BMW OF NORTH AMERICA, INC.
