23..... Universal transmission retaining bridge

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

00 1 450
24 0 200

NOTE:

The transmission retaining bridge 24 0 200 is suitable for both manual and automatic transmissions

IMPORTANT: Adapters and spindles must be adapted for positive locking to the transmission.
(Risk of injury)

Adapt adapters (1) and spindle with thrust piece (3) to transmission.

Adapt length with slide (2).

Screw in spindle (4).

IMPORTANT: Before mounting on assembly stand 00 1 450 , check retaining bridge for secure seating.

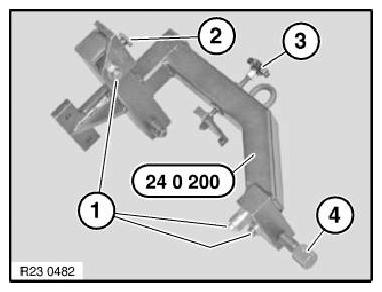

Fig 1: Identifying Adapters, Spindle, Trust Piece And Slide Length

Courtesy of BMW OF NORTH AMERICA, INC.
