23... Universal BMW transmission take-up

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

00 2 030
23 4 050

NOTE:

The universal transmission bracket is introduced for the E60 AWD
Suitable for manual and automatic transmissions

IMPORTANT: Front and rear supports (1) can be laterally adjusted by means of screws (2).
Carrier (3) of rear supports (1) can be longitudinally adjusted by means of screw.

Supports must be adapted in length and width to the transmission.

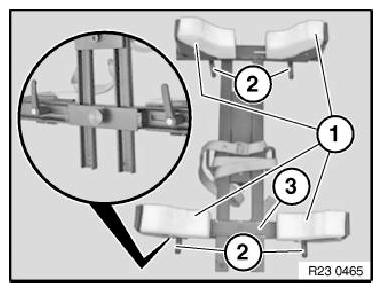

Fig 1: Identifying Carrier, Rear Supports And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Supporting transmission:

Support transmission with special tools 23 4 050 , 00 2 030 .

IMPORTANT: Transmission must be secured with tensioning strap (1).

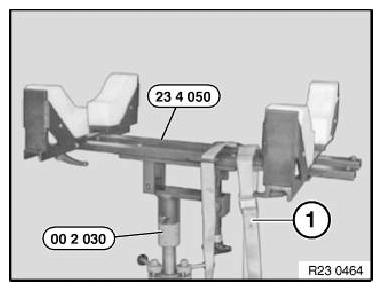

Fig 2: Supporting Transmission Using Special Tools (23 4 050 And 00 2 030)

Courtesy of BMW OF NORTH AMERICA, INC.
