24 34... Notes on mechatronics (GA6HP19Z/GA6HP26Z/GA6HP32Z)
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required
IMPORTANT:
After completing work:
Use only the approved transmission fluid: Shell M-1375.4 ; BMW part number 83 22 0 142 516 ; 20 liters
Failure to comply with this requirement will result in serious damage to the automatic transmission!
- Load specific data version with DIS
- Check TRANSMISSION OIL LEVEL
Use only the approved transmission fluid: Shell M-1375.4 ; BMW part number 83 22 0 142 516 ; 20 liters
Failure to comply with this requirement will result in serious damage to the automatic transmission!
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION)
.

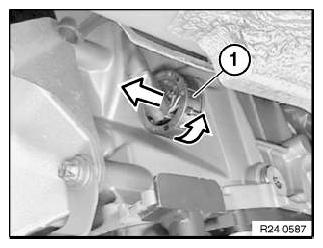

Unscrew plug (1) and disconnect.

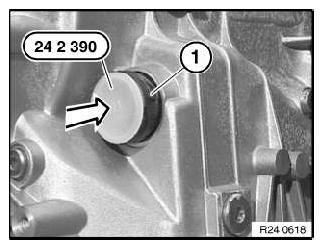

Insert special tool 24 2 390 in sealing sleeve (1).
