Manual emergency release of parking lock from passenger compartment is not possible with GA6HP/GA8HP gearboxes for
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
- F01/F02/F03 GA6HP from production date 03/2010
- F01/F02/F03/F04 GA8HP from production date 09/2010
- F07 GA8HP from production date 03/2010
- F10 / F11 GA8HP as from production date 06/2010
NOTE:
Releasing the transmission lock under the vehicle floor remains possible for towing purposes.
MANUALLY RELEASING TRANSMISSION LOCK
In the event of a power supply interruption, e.g. flat battery or electrical fault, the parking lock must be manually released, otherwise the wheels will be locked and the vehicle cannot be moved.
IMPORTANT:
Secure vehicle against rolling, e.g. with chocks.
Press the brake pedal when manually releasing the transmission lock, otherwise there is a risk that the vehicle will roll when the transmission lock is manually released.
If the parking brake has to be released as well, observe the following procedure:
Press the brake pedal when manually releasing the transmission lock, otherwise there is a risk that the vehicle will roll when the transmission lock is manually released.
If the parking brake has to be released as well, observe the following procedure:
- First, manually release the PARKING BRAKE .
- Then manually release the automatic transmission lock.
NOTE:
Release tool is located in on-board tool kit.

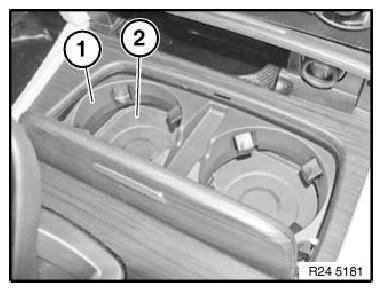

Open lid of drinks holder (1).
Lift out drinks holder (1) and rubber mat (2) from drinks holder base.

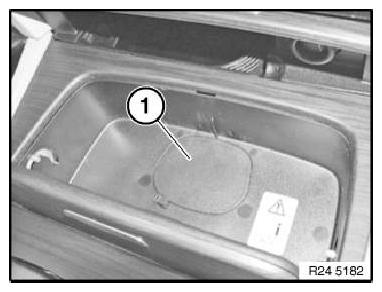

Remove cover (1).
Releasing transmission lock:

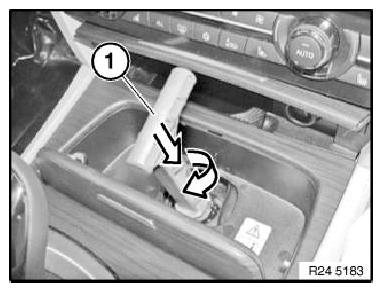

Insert release tool (1) into opening.
Turn release tool clockwise up to stop and press down.
Transmission lock is released!
Locking transmission lock:

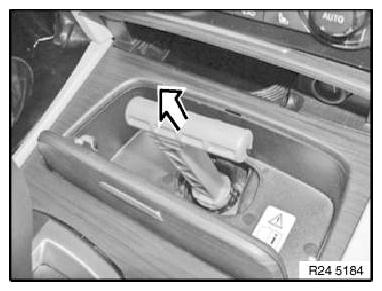

Pull out release tool in direction of arrow.
Transmission lock is locked.
