24 34 561 Replacing mechatronics (GA6HP26Z)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

24 2 390

NOTE: After completing work:

Load specific data version with DIS

IMPORTANT: After completion of work, CHECK TRANSMISSION OIL LEVEL .
Use only the approved transmission fluid: Shell M-1375.4 ; BMW part number 83 22 0 142 516 ; 20 liters
Failure to comply with this requirement will result in serious damage to the automatic transmission!

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove underbody protection at front and rear. See FRONT UNDERBODY PROTECTION and REAR UNDERBODY PROTECTION .
Remove exhaust system bracket

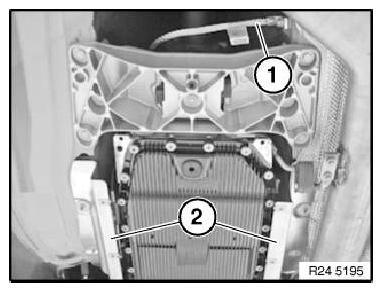

Remove plates (2).

Fig 1: Identifying Earth Strap And Plates

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut.

Disconnect cable (1).

Installation:

Adjusting cable:

Release nut

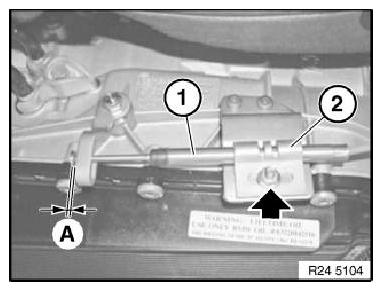

Adjust cable by means of holder (2) until spacing A ≥ 1 mm is obtained.
Tighten down nut

Fig 2: Locating Cable Nut
Courtesy of BMW OF NORTH AMERICA, INC.

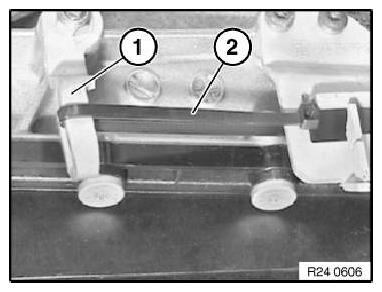

Secure lever (1) with a cable tie (2) or wire in vertical position.

Fig 3: Securing Lever Using Cable Tie

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Mechatronics can be destroyed by static discharges. Therefore the contacts inside the plug must not be touched. Insert special tool immediately after work step.

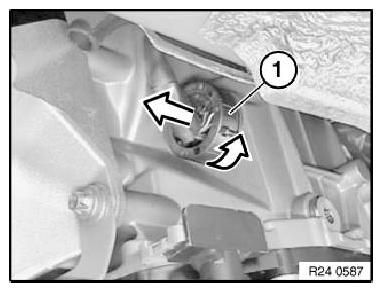

Unscrew plug (1) and disconnect.

Fig 4: Disconnecting Plug

Courtesy of BMW OF NORTH AMERICA, INC.

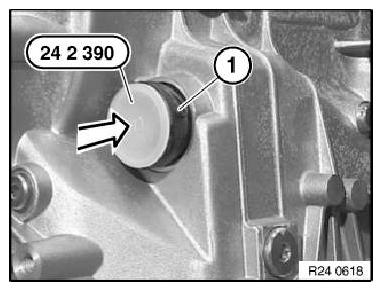

Insert special tool 24 2 390 in sealing sleeve (1).

Fig 5: Inserting Special Tool (24 2 390) In Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Remove TRANSMISSION OIL SUMP .

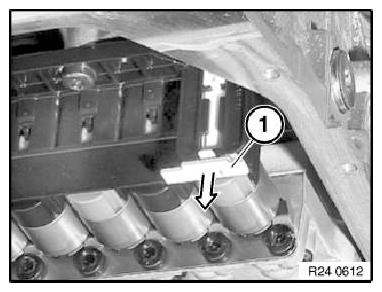

Unlock sealing sleeve with slide (1).

Fig 6: Sliding Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

Note position of sealing sleeve.

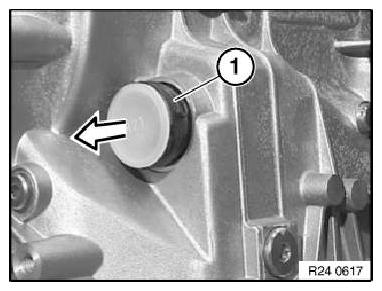

Pull out sealing sleeve (1).

Installation:

Screw in sealing sleeve partially (lug in upper area). Turn until lug engages in groove of transmission. Slide in sealing sleeve.

Lug on sealing sleeve must not be damaged!

Fig 7: Pulling Out Sealing Sleeve

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: GA6HP26Z TU

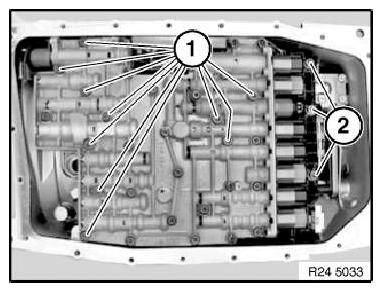

Release all screws (1 and 2).

1 = M6 x 59 mm
2 = M6 x 20 mm

Remove mechatronics.

Fig 8: Identifying Mechatronics Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

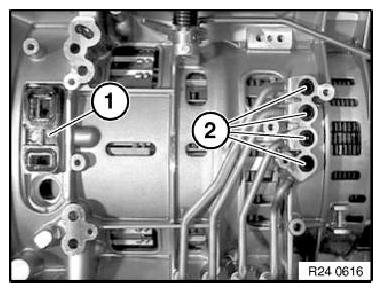

Check gaskets (1 and 2) for damage, replace gaskets if necessary.

Coat new seals with automatic transmission fluid and install.

Fig 9: Identifying Gaskets

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

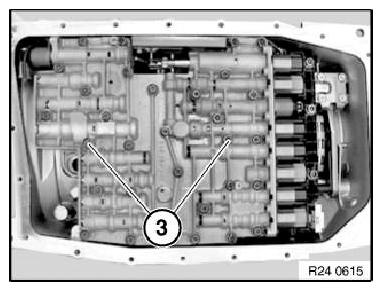

Insert screws (3) alternately until contact is made with each screw head.

Insert all further screws contact is made with each screw head.

Fig 10: Identifying Screw Head Screws

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: GA6HP26Z TU

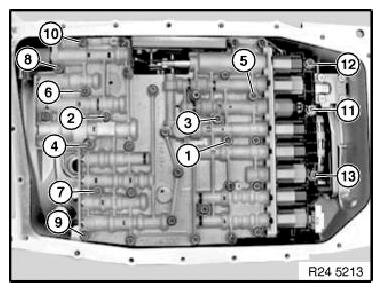

IMPORTANT: Tighten down screws in order 1...13.
Failure to comply with this requirement will result in serious damage to the automatic transmission!
Tightening torque 24 30 1AZ .

Fig 11: Automatic Transmission Valve Body (Mechatronics) Screws Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.
