Removing the hub cap

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Press on emblem in area (1) and turn in direction of arrow.

Fig 1: Turning Emblem

Courtesy of BMW OF NORTH AMERICA, INC.

Open lock with key (1) and remove hub cap (2).

Fig 2: Identifying Hub Cap And Lock With Key

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure that there are 10 friction film pieces (see arrows in illustration) on the hub cap.

When replacing the hub caps, the supplied friction film pieces must also be attached.

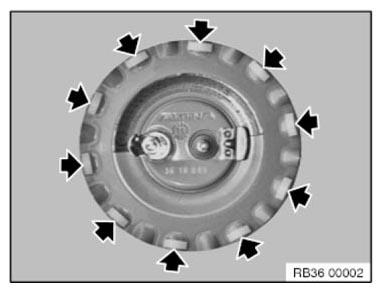

Fig 3: Locating Friction Film Pieces On Hub Cap

Courtesy of BMW OF NORTH AMERICA, INC.
