36 10 209 Checking front and rear wheel for lateral and radial runout

Special tools required

• 36 1 030

Necessary preliminary tasks:

• Check wheel bearings

Lift vehicle.

Check wheel with special tool 36 1 030 (measuring fixture) for lateral runout. See TWO-PART ALLOY WHEELS , ONE-PART ALLOY WHEELS , or STEEL AND ALUMINIUM STRIP WHEELS .

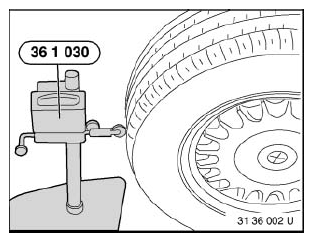

Fig 1: Checking Wheel Lateral Runout Using Special Tool (36 1 030)

Courtesy of BMW OF NORTH AMERICA, INC.

Check wheel with special tool 36 1 030 (measuring fixture) for radial runout. See TWO-PART ALLOY WHEELS , ONE-PART ALLOY WHEELS , or STEEL AND ALUMINIUM STRIP WHEELS .

Fig 2: Checking Wheel Radial Runout Using Special Tool (36 1 030)

Courtesy of BMW OF NORTH AMERICA, INC.

If applicable, remove balance weights.

Check lateral runout of rim with special tool 36 1 030 (measuring fixture). See TWO-PART ALLOY WHEELS , ONE-PART ALLOY WHEELS , or STEEL AND ALUMINIUM STRIP WHEELS .

Fig 3: Checking Lateral Runout Of Rim Using Special Tool (36 1 030)

Courtesy of BMW OF NORTH AMERICA, INC.

Check radial runout of rim with special tool 36 1 030 (measuring fixture). See TWO-PART ALLOY WHEELS , ONE-PART ALLOY WHEELS , or STEEL AND ALUMINIUM STRIP WHEELS .

Fig 4: Checking Radial Runout Of Rim Using Special Tool (36 1 030)

Courtesy of BMW OF NORTH AMERICA, INC.
