36 11 105 Removing and installing RDC (Tyre Pressure Control) control unit: Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE
(ESD protection).
Necessary preliminary tasks:
- Remove right LUGGAGE COMPARTMENT WHEEL ARCH PANEL .

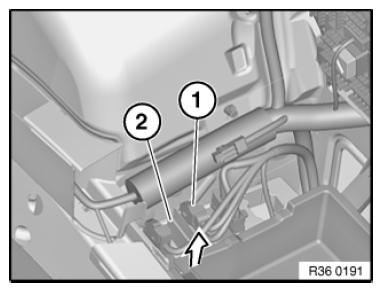

Disconnect plug connection (1).
Pull out RDC control unit (2) upwards in direction of arrow.
