11 65 185 Removing and installing/renewing heat shield at bottom (N63)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Disconnect the BATTERY CABLE FROM THE NEGATIVE TERMINAL .
Remove FAN COWL with electric fan.
Remove the ALTERNATOR (not F04).
Remove both exhaust turbochargers. See EXHAUST TURBOCHARGER, RIGHT (CYLINDERS 1-4) and EXHAUST TURBOCHARGER, LEFT (CYLINDERS 5-8) .
Remove both exhaust manifolds. See LEFT EXHAUST MANIFOLD and RIGHT EXHAUST MANIFOLD .

Release screws (1).

Tightening torque 11 65 3AZ .

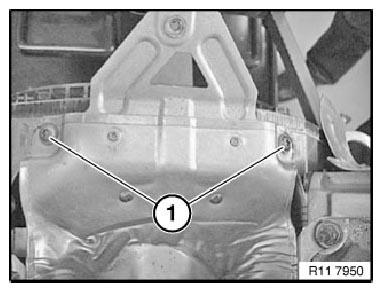

Fig 1: Identifying Heat Shield Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 65 3AZ .

Remove heat shield (2) towards top.

Fig 2: Identifying Screws And Heat Shield

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Tightening torque 11 65 3AZ .

IMPORTANT: Risk of interchange on replacement of the heat shield.
Other shields are installed in the N63H and S63 engines.

Fig 3: Identifying Heat Shield Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release front screws on heat shield (1).

Tightening torque 11 65 3AZ .

Remove heat shield (1) towards top.

IMPORTANT: Risk of interchange on replacement of the heat shield.
Other shields are installed in the N63H and S63 engines.

Fig 4: Identifying Heat Shield Front Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
