11 00 Removing and installing/replacing the acoustic cover (N63)

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Remove acoustic cover (1) in following steps:

To raise
Remove in direction of travel

Installation note:

Insert acoustic cover (1) into existing rubber guides.

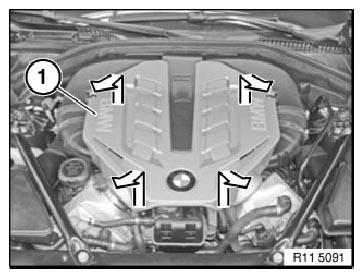

Fig 1: Removing Acoustic Cover

Courtesy of BMW OF NORTH AMERICA, INC.
