11 12 105 Removing and installing left cylinder head (N63)

Special tools required

• 11 4 470
• 81 22 2 184 136.

Necessary preliminary tasks:

• Drain COOLANT
• Remove front axle completely with engine and transmission.

  The graphic shows the removed engine on a lifting table special tool 81 22 2 184 136.

  The graphic shows the E72

Fig 1: Identifying Engine On Lifting Table Special Tool (81 22 2 184 136)

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

• Check TIMING
• Remove left INLET AND EXHAUST ADJUSTMENT UNIT

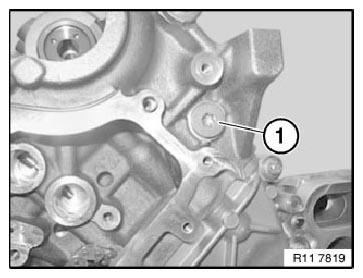

Release screw (1).

Fig 2: Identifying Guide Rail Screw

Courtesy of BMW OF NORTH AMERICA, INC.

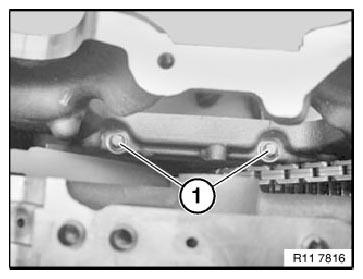

Release bolts (1) at front from cylinder head.

Fig 3: Identifying Cylinder Head Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

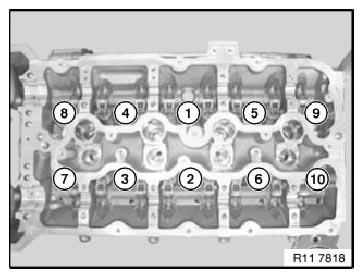

Release cylinder head bolts in sequence (10 to 1).

Remove all cylinder head bolts with washers.

Fig 4: Identifying Cylinder Head Bolts Releasing Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Clean sealing faces of cylinder head and engine block; if necessary, remove gasket debris compound with special tool 11 4 470 . Make sure no gasket remnants drop into oil and cooling channels.

Check CYLINDER HEAD for leaks.

Check CYLINDER HEAD SEALING FACE  for surface evenness.

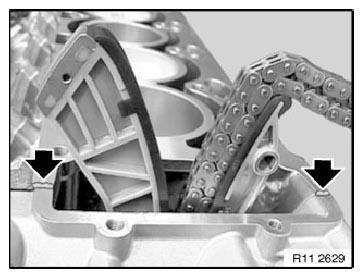

Coat joint between engine block and timing case cover with Drei Bond 1209 (refer to BMW Parts Department).

Fig 5: Locating Drei Bond 1209 Applying Area

Courtesy of BMW OF NORTH AMERICA, INC.

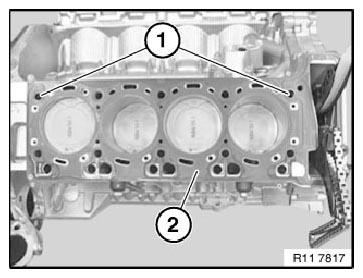

Check fitting sleeves (1) for damage and correct installation position.

Installation note:

Renew cylinder head gasket (2).

Fit new cylinder head gasket (2).

Fig 6: Identifying Cylinder Head Gasket And Fitting Sleeves

Courtesy of BMW OF NORTH AMERICA, INC.

Put the cylinder head on.

Do not wash off bolt coating.

Installation note:

Fit new cylinder head bolts.

Insert new cylinder head bolts and initially tighten so that they are free of play.

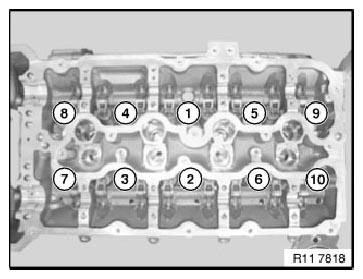

Tighten down cylinder head bolts in sequence 1 - 10.

Tightening torque 11 12 1AZ .

Fig 7: Identifying Cylinder Head Bolts Releasing Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

Install and tighten down bolts (1) between cylinder head and timing case cover.

Tightening torque 11 12 2AZ .

Fig 8: Identifying Cylinder Head Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Insert screw (1) of guide rail and tighten down.

Tightening torque 11 31 3AZ .

Fig 9: Identifying Cylinder Head Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, install camshafts. See LEFT EXHAUST CAMSHAFT  and LEFT INLET CAMSHAFT .

Install left INLET AND EXHAUST ADJUSTMENT UNITS .

Assemble engine.

Fill and vent cooling system
