64 11.. Overview of actuator drives on heater/air conditioner

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

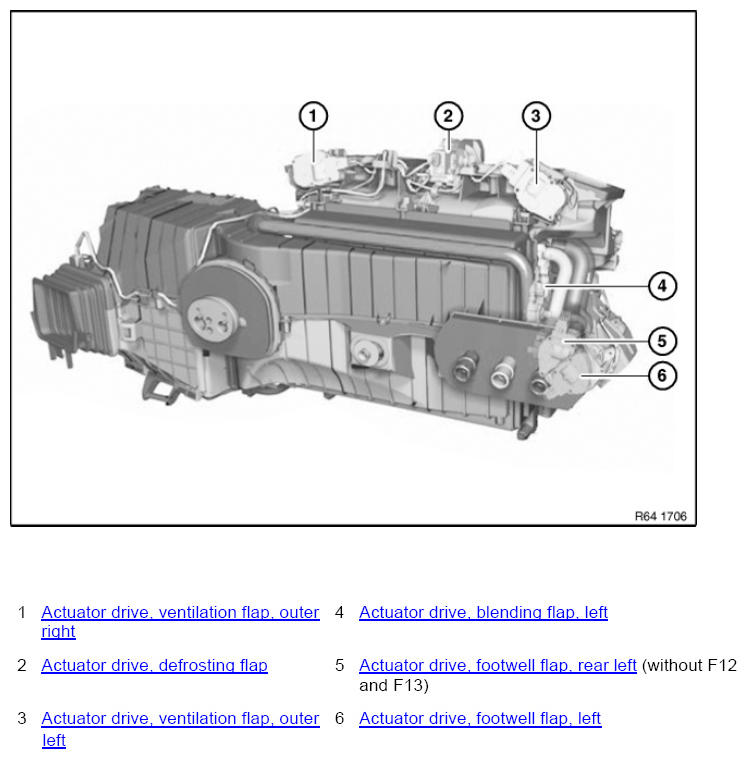

Fig 1: Overview Of Actuator Drives On Heater/Air Conditioner
G08509925Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The High equipment specification heater/air conditioner is pictured!

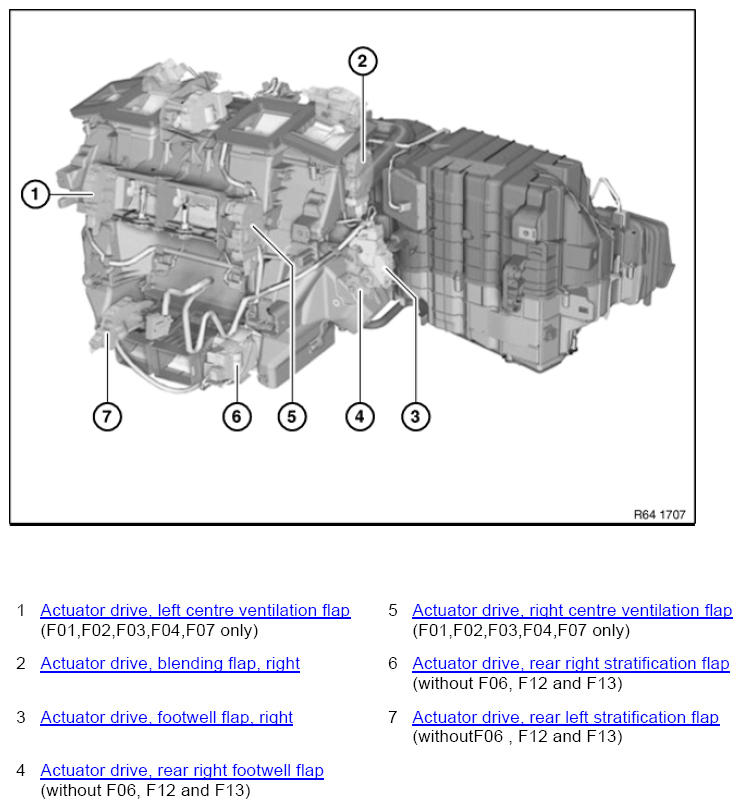

Fig 2: Identifying Heater/Air Conditioner Flap And Actuator Drives
G08509926Courtesy of BMW OF NORTH AMERICA, INC.
NOTE: The High equipment specification heater/air conditioner is pictured!
