64 51 591 Removing and installing/renewing evaporator: Replacement
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

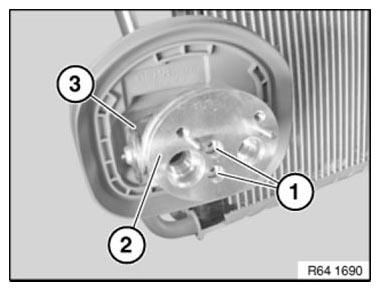

Release screws (1) and remove flange (2) with expansion valve (3).
Tightening torque 64 53 2AZ
.
Installation note:
Ensure that seals are correctly seated.
Replace sealing rings.
Use special tool 00 9 030
to mount sealing rings without damaging them.
Courtesy of BMW OF NORTH AMERICA, INC.
