34 51 527 Removing and installing/replacing DSC hydraulic unit: Notes

Necessary preliminary tasks:

• Read and comply with GENERAL INFORMATION .
• Remove front left rear WHEEL ARCH PANEL .
• Remove left UNDERBODY PANELLING .
• F12: Remove left V-strut.

After completing repair work:

• BLEED BRAKE SYSTEM

Press brake pedal down to floor and secure with pedal support.

Fig 1: Locating Pedal Support

Courtesy of BMW OF NORTH AMERICA, INC.

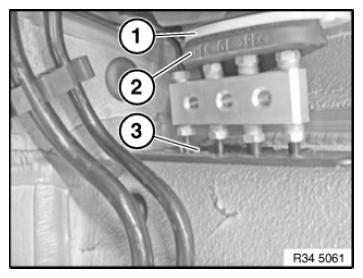

Cut open cable strap (1).

Replace cable straps.

Remove foam block (2).

Lever out penetration (3) and pull out towards front.

Fig 2: Identifying Cable Strap, Foam Block And Penetration

Courtesy of BMW OF NORTH AMERICA, INC.

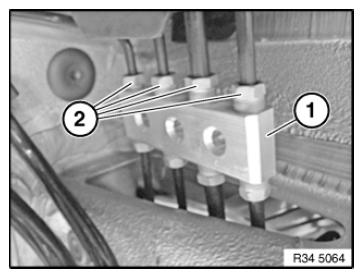

Grip at square head (1) and release brake lines (2).

Tightening torque 34 32 1AZ .

Fig 3: Identifying Square Head And Brake Lines

Courtesy of BMW OF NORTH AMERICA, INC.

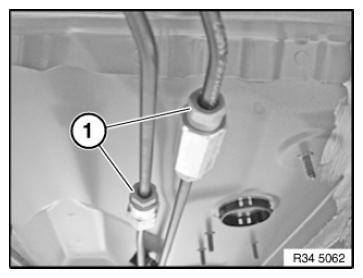

Unfasten brake lines (1).

Installation note:

Tightening torque 34 32 1AZ .

Fig 4: Identifying Brake Lines

Courtesy of BMW OF NORTH AMERICA, INC.

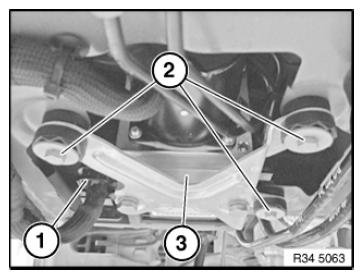

Disconnect plug connection (1).

Unfasten screws (2).

Installation note:

Tightening torque 34 51 5AZ .

Remove hydraulic unit (3) towards bottom.

Fig 5: Identifying Plug Connection, Hydraulic Unit And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

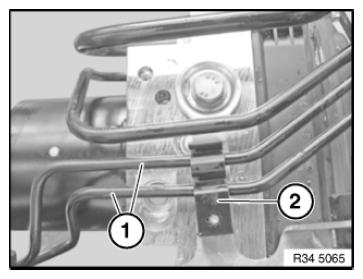

Unclip brake lines (1) from holder (2).

Fig 6: Identifying Brake Lines And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

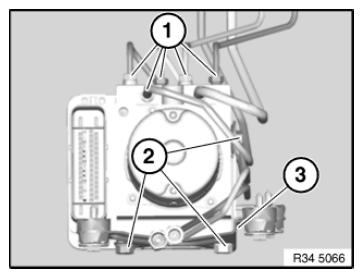

Unfasten brake lines (1).

Installation note:

Tightening torque 34 32 1AZ .

Unfasten screws (2). Take off holder (3).

Installation note:

Tightening torque 34 51 4AZ .

Fig 7: Identifying Brake Lines, Holder And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
