34 52 516 Removing and installing/replacing DSC control unit: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST DAMAGE FROM ELECTROSTATIC DISCHARGE (ESD protection).

Necessary preliminary tasks:

Remove HYDRAULIC UNIT .

IMPORTANT: Maintain conditions of absolute cleanliness.

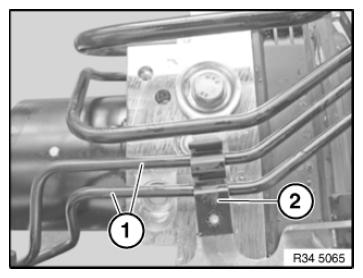

Unclip brake lines (1) from holder (2).

Fig 1: Identifying Brake Lines And Holder

Courtesy of BMW OF NORTH AMERICA, INC.

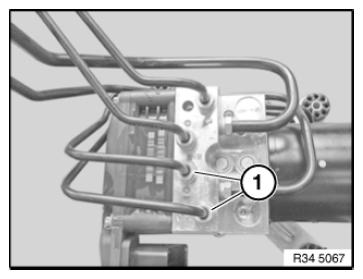

Unfasten brake lines (1).

Installation note:

Tightening torque 34 32 1AZ .

Fig 2: Identifying Brake Lines

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of damage to the contacts when removing and installing the hydraulic unit.

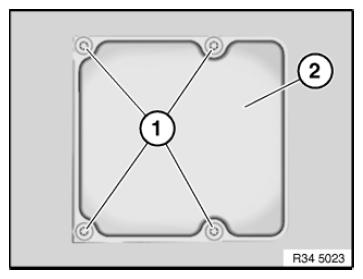

Release screws (1) and carefully detach DSC control unit (2) towards top.

Fig 3: Identifying DSC Control Unit And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Cleaning with compressed air, chemical solvents and sharp-edged objects is not permitted.

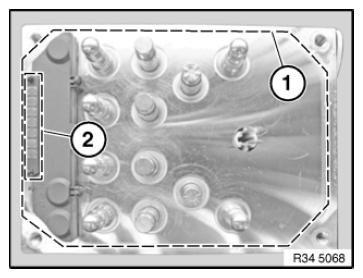

Do not touch pressure sensor contacts (2) with your fingers or clean the contacts.

If necessary, clean sealing surface (1) with a plastic scraper or a fluff-free cloth.

Fig 4: Identifying Pressure Sensor Contacts And Sealing Surface

Courtesy of BMW OF NORTH AMERICA, INC.

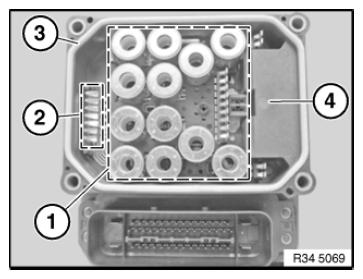

IMPORTANT: Do not touch valve coils (1) and pressure sensor contact springs (2) with your fingers, do not clean or readjust these components either.

Check gasket (3) for damage. If damaged, replace DSC control unit (4).

Fig 5: Identifying Valve Coils, Sensor Contact Springs, Gasket And DSC Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure screws are inserted evenly and DSC control unit rests on hydraulic unit.

Replace screws.

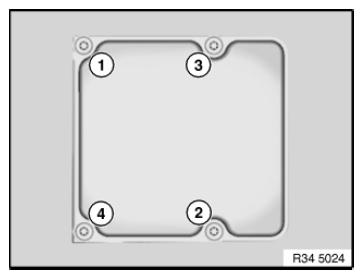

Observe tightening sequence (1-4).

Tightening torque 34 51 1AZ .

Fig 6: DSC Control Unit Bolts Tightening/Loosening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.
