61 35 250 Removing and installing control unit for left electric-motor-driven retractor

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on protection against electrostatic damage (ESD PROTECTION) .

Necessary preliminary tasks:

Remove LEFT B-PILLAR SENSOR

Version with electric motor retractor:

Release screws (1).

Installation note:

Replace screws.

Tightening torque 72 11 01AZ .

Unlock automatic reel (2) and remove from B-pillar.

Fig 1: Identifying Automatic Reel With Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retractor mechanism is coded against incorrect assembly.

Unfasten plug connection (1) and disconnect.

Lay seat belt to one side.

Fig 2: Identifying Automatic Reel Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken screws (1)

Raise control unit (2) at screws slightly.

Feed control unit (2) in direction of arrow out of B-pillar.

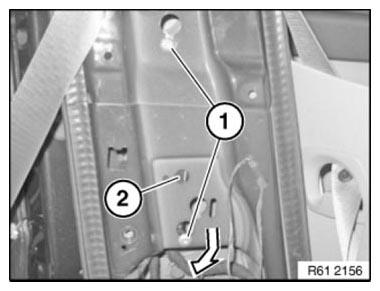

Fig 3: Removing Control Unit Out Of B-Pillar

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (1) and disconnect.

Remove control unit (2).

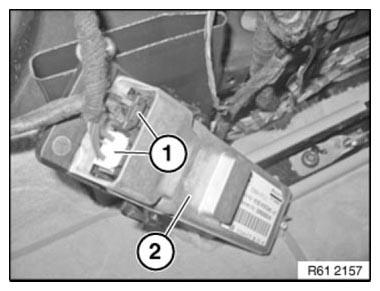

Fig 4: Identifying Control Unit With Plug Connections

Courtesy of BMW OF NORTH AMERICA, INC.
