33 55 021 Replacing both rubber mounts for stabilizer mounting

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove STABILIZER FROM REAR AXLE CARRIER

IMPORTANT: Circo Light must not be used between stabilizer and rubber mount!

Remove retaining bracket (1) and rubber mount (2) from stabilizer.

Installation:

Coat rubber mount with Circo Light to install retaining bracket.

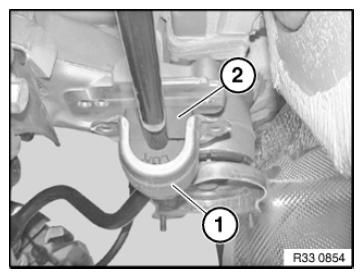

Fig 1: Identifying Stabilizer Retaining Bracket And Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Keep stabilizer clean and free of oil and grease.

Mount rubber mount (1) by way of slot (2) as pictured on stabilizer.

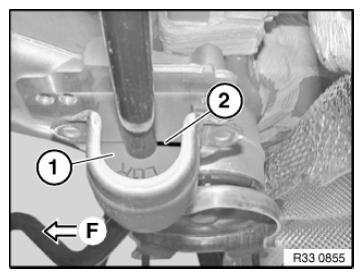

Fig 2: Identifying Stabilizer Rubber Mount And Slot

Courtesy of BMW OF NORTH AMERICA, INC.
