33..... Overview of rear axle support with rubber mounts

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

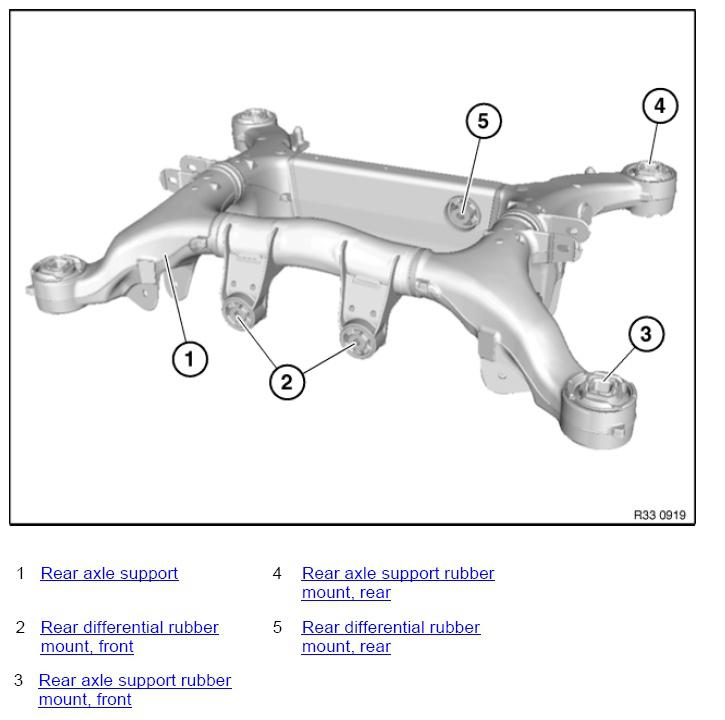

Fig 1: Overview Of Rear Axle Support With Rubber Mounts
G08504855Courtesy of BMW OF NORTH AMERICA, INC.
