33 00... Rear axle: wheel alignment check must be carried out after the following work
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

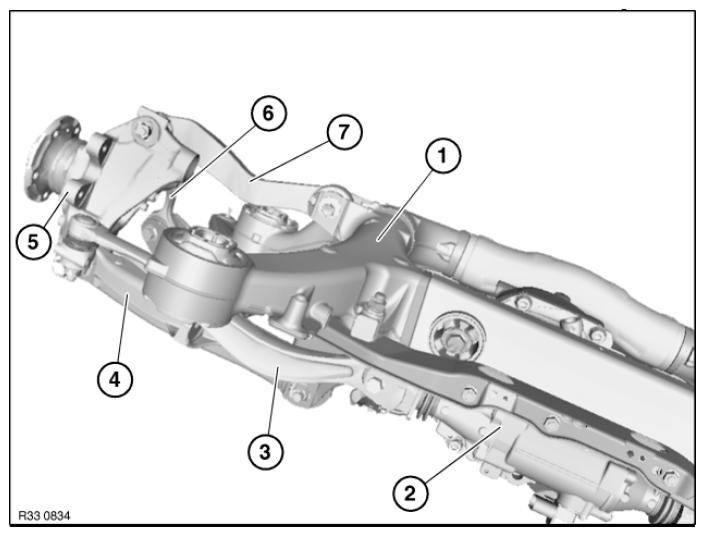

Graphic F01/F02.
A WHEEL ALIGNMENT CHECK must be carried out after the following work:
- Release the following screw connection:
- Swinging arm, front/rear, to rear axle support
- Swinging arm to integral link/wheel carrier
- Guide arm to rear axle support/HSR unit
- Wishbone to rear axle support/wheel carrier
- Replacement of following parts:
- Rear axle support
- HSR actuator
- Toe arm
- Swinging arm
- Wheel carrier
- Integral link
- Wishbone
