Vibration absorber to rear axle differential, front right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Slacken nut (1).

Tightening torque 33 17 3AZ

Remove vibration absorber (2).

Installation note:

Replace nut.

First, screw the rear axle differential to the rear axle support with the specified tightening torque.

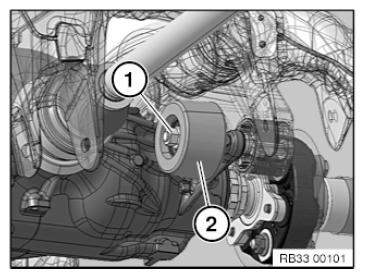

Fig 1: Identifying Rear Axle Differential Vibration Absorber And Slacken Nut

Courtesy of BMW OF NORTH AMERICA, INC.
