Vibration absorber to front adapter

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Support rear axle differential.

Slacken nut (1).

Tightening torque 33 17 1AZ .

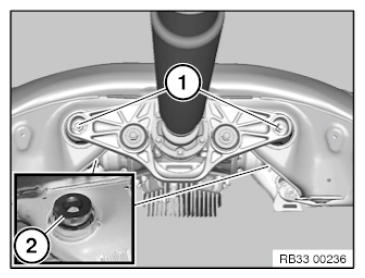

Fig 1: Identifying Front Adapter Vibration Absorber And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Remove screw and vibration absorber (2).

Installation note:

Replace nut (1) and screw.
