Vibration absorber to anti-roll bar, right

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Release screws (1).

Tightening torque 33 55 3AZ

Remove vibration absorber (2).

Installation note:

Replace screw.

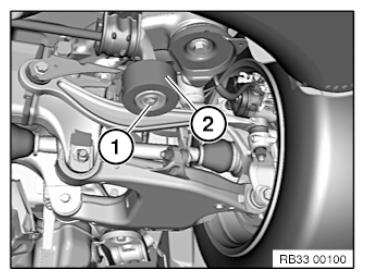

Fig 1: Identifying Anti-Roll Bar Vibration Absorber And Screws
G08504891Courtesy of BMW OF NORTH AMERICA, INC.
