33 32 240 Replacing a ball joint in left or right swinging arm/lower wheel carrier: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Vehicle with air suspension:
- Deactivate and drain AIR SPRING/SUSPENSION SYSTEM
- REMOVE spring strut from wheel carrier.
Vehicle without air suspension:
- REMOVE spring strut from wheel carrier.
Remove INTEGRAL LINK from wheel carrier.
REMOVE ANTI-ROLL BAR LINK from swinging arm.
REMOVE SWINGING ARM from wheel carrier.

Secure special tool 31 5 220 with wheel studs to drive flange.

Support axle support with special tool 31 5 220 and workshop jack 00 2 030 .

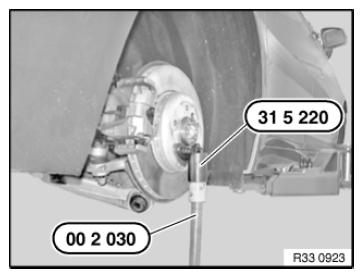

Fig 1: Supporting Axle Support Using Special Tool 31 5 220 And Workshop Jack 00 2 030

Courtesy of BMW OF NORTH AMERICA, INC.

Remove circlip (1).

Installation note:

Install retaining ring (1).

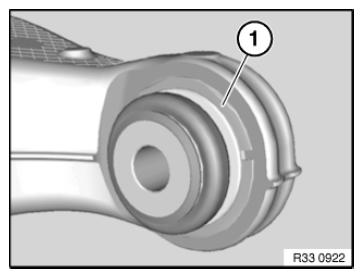

Fig 2: Identifying Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out ball joint with special tools 33 4 193 , 33 4 191 , 33 4 192 and 33 3 333 .

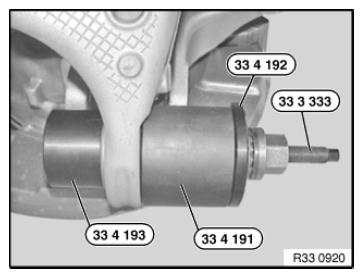

Fig 3: Pulling Out Ball Joint Using Special Tools (33 4 193, 33 4 191, 33 4 192 And 33 3 333)

Courtesy of BMW OF NORTH AMERICA, INC.

Fit new ball joint (1) with special tools 33 3 333 , 33 4 192 , 33 4 191 and 33 4 194 .

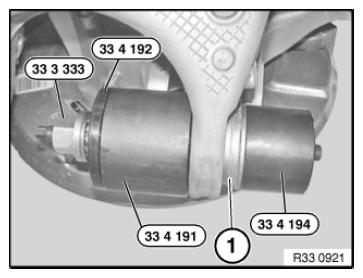

Fig 4: Fitting Ball Joint Using Special Tools (33 3 333, 33 4 192, 33 4 191 And 33 4 194)

Courtesy of BMW OF NORTH AMERICA, INC.
