33 32 180 Removing and installing/replacing left or right toe arm: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the toe arm is detached from the rear axle support, it will be necessary to carry out a wheel alignment procedure after assembly. See ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .

Necessary preliminary tasks:

Remove REAR WHEEL .

F01, F02:

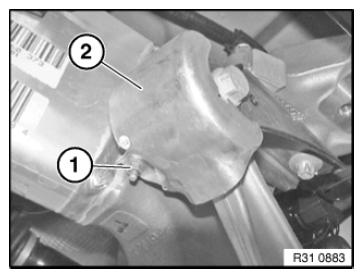

Release nut (1) and remove heat shield (2).

Tightening torque 33 32 10AZ .

Installation note:

Replace self-locking nut.

Fig 1: Identifying Heat Shield And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

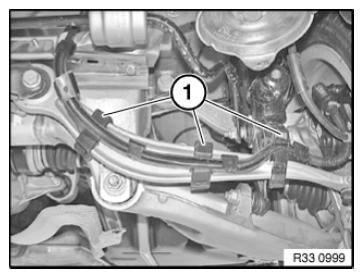

Remove cable holder (1) from toe arm, if applicable.

Installation note:

Replace faulty cable clips.

Fig 2: Pulling On Rubber Mount Using Special Tools (33 0 033, 33 0 034, 33 0 035 And 33 0 036)

Courtesy of BMW OF NORTH AMERICA, INC.

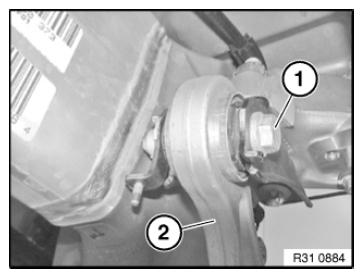

Release screw (1).

Tightening torque 33 32 6AZ .

Pull out bolt (1) and remove toe link (2).

Installation note:

Tighten down screw connection in NORMAL POSITION .

Fig 3: Identifying Toe Link And Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Slacken nut (1).

Tightening torque 33 32 7AZ

Remove toe link (2) from wheel carrier.

Installation note:

Insert toe link (2) first in wheel carrier.

Keep toe link to wheel carrier connection clean and free from oil and grease.

Replace nut.

Fig 4: Identifying Toe Link And Nut

Courtesy of BMW OF NORTH AMERICA, INC.
