33 32 051 Removing and installing/replacing left or right anti-roll bar link/integral link: Notes
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If the integral link is detached from the swinging arm, it is necessary after installation to carry out a chassis/wheel alignment check.
Necessary preliminary tasks:
- Remove REAR WHEEL .

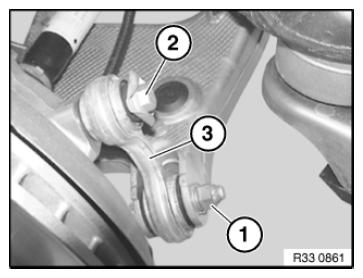

Release nut (1) and remove screw.
Tightening torque 33 32 4AZ .
Release screw (2) and remove integral link (3).
Tightening torque 33 32 5AZ .
Installation note:
Replace screw and nut.
Tighten screw connections in NORMAL POSITION .
