33 33 111 Replacing all rubber mounts for rear axle support: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Danger of injury!

Failure to comply with the following instructions may result in the vehicle slipping off the lifting platform and critically injuring other persons.

Before lowering/removing the rear axle support, it is essential to place a minimum load of 100 kg in the luggage compartment to prevent the vehicle from toppling/slipping off the vehicle hoist!

When supporting components, make sure that:

IMPORTANT: Before lowering/removing rear axle support:

Observe SAFETY INFORMATIONS for raising the vehicle

In order to avoid damage to vehicle hoist, perform weight compensation on vehicle.

Necessary preliminary tasks:

Risk of damage!

It is mandatory to observe the correct press-out and press-in directions. Failure to comply with this requirement will result in damage to the rear axle support!

To ensure that rear axle rubber mounts are securely seated in rear axle support, observe a waiting period of 2 hours after pressing in rubber mounts.

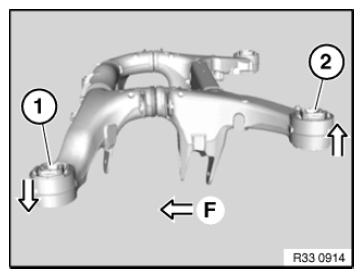

Graphic F01:

Press-out and press-in directions pictured.

Fig 1: Identifying Front And Rear Rubber Mount Press-Out And Press-In Directions
G08504977Courtesy of BMW OF NORTH AMERICA, INC.
IMPORTANT: For F01/F02 vehicles with N74 engine only:

Install damping inserts in both front rubber mounts.

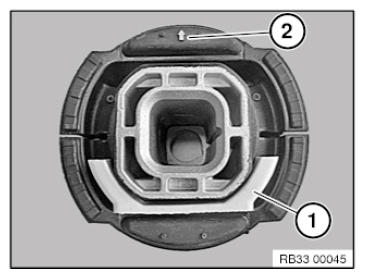

Install damping inserts (1) in the rear gap, opposite the direction arrow (2).

Fig 2: Identifying Damping Inserts
G08504978Courtesy of BMW OF NORTH AMERICA, INC.

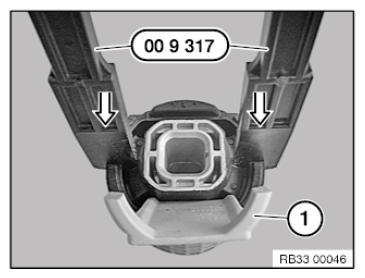

Spread apart rubber mount with special tool 00 9 317 and insert Damping inlay (1) to limit position!

Fig 3: Inserting Damping Inlay Using Special Tool (00 9 317)
G08504979Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
  • Removal and installation are described on the front rubber mount.

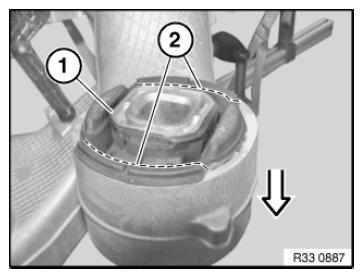

NOTE: Edges (2) break off when rubber mount (1) is pulled out in the direction of arrow.
Fig 4: Identifying Rubber Mount With Edges
G08504980Courtesy of BMW OF NORTH AMERICA, INC.

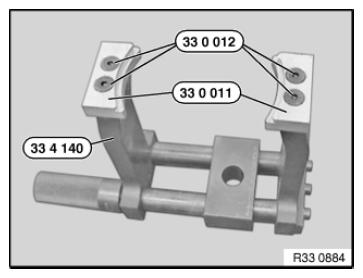

Assemble special tool 33 4 140 in conjunction with 33 0 011 and 33 0 012 .

Fig 5: Assembling Special Tool 33 4 140 In Conjunction With 33 0 011 And 33 0 012
G08504981Courtesy of BMW OF NORTH AMERICA, INC.

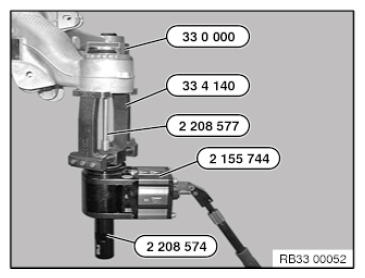

Pull out rubber mounts using special tools 33 0 000 , 33 4 140 , 2 208 577, 2 155 744 and 2 208 574 pull out of the rear axle support.

NOTE: Align special tool 33 0 000 form-fit to the rubber mount.

Make sure special tool 33 4 140 is correctly supported on rear axle support bush.

Fig 6: Pulling Out Rubber Mounts Using Special Tools
G08504982Courtesy of BMW OF NORTH AMERICA, INC.

Applicable to front rubber mount:

(View of rear axle support from above)

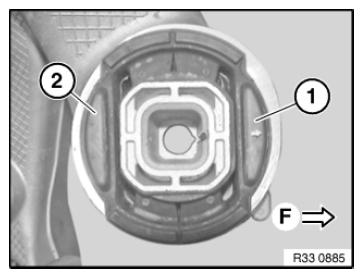

IMPORTANT: Arrow (1) must point on rubber mount (2) in direction of travel.
Fig 7: Identifying Rubber Mount And Travel Direction
G08504983Courtesy of BMW OF NORTH AMERICA, INC.

Applicable to rear rubber mount:

(View of rear axle support from below)

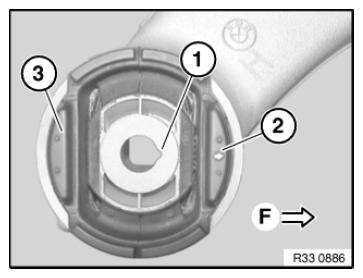

IMPORTANT: Notch (1) and arrow (2) on rubber mount (3) must point in direction of travel.
Fig 8: Identifying Rubber Mount, Notch And Travel Direction
G08504984Courtesy of BMW OF NORTH AMERICA, INC.

Coat rubber mount (1) with Circo Light.

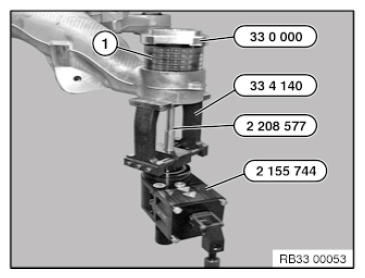

Pull in the rubber mounts (1) using special tools 33 0 000 , 33 4 140 , 2 208 577, 2 208 574 and 2 155 744 to the limit position of the rear axle support.

Fig 9: Pulling In Rubber Mounts Using Special Tools
G08504985Courtesy of BMW OF NORTH AMERICA, INC.
