33 34 070 Removing and installing/renewing integral active steering: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Lower REAR AXLE SUPPORT .
REMOVE BOTH TOE LINKS .

IMPORTANT: Screws (1) must not be released during removal!

Fig 1: Identifying Integral Active Steering Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect plug connections (1) from steering.

Release screw (2) and remove grounding cable.

Tightening torque 33 34 4AZ .

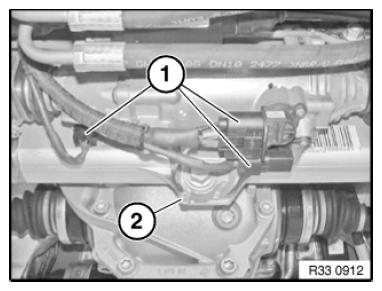

Fig 2: Identifying Active Steering Plug Connections And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 33 34 2AZ .

Undo collar bolts (2).

Tightening torque 33 34 1AZ .

Installation note:

Observe assembly sequence shown in Fig 5 to prevent integral active steering from jamming during installation.

Fig 3: Identifying Collar Bolts And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts (1) and remove Integral Active Steering towards bottom.

Tightening torque 33 34 3AZ .

Installation note:

Observe assembly sequence shown in Fig 5 to prevent integral active steering from jamming during installation.

Fig 4: Identifying Integral Active Steering Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Observe assembly sequence.

Fasten screws and nuts on the Integral Active Steering at the rear axle support, see graphic.

Fig 5: Identifying Integral Active Steering Screws Fastening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.
