31 12 134 Replacing rubber mount in left or right trailing link

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Rubber mount may only be renewed once!

Necessary preliminary tasks:

Check ball joints of trailing links while installed, replace TRAILING LINK if necessary.
Remove TRAILING LINK .

IMPORTANT: If the trailing link already features an identification mark with a center punch, it is necessary to replace the trailing link.

Mark trailing link with a punch mark in area (A).

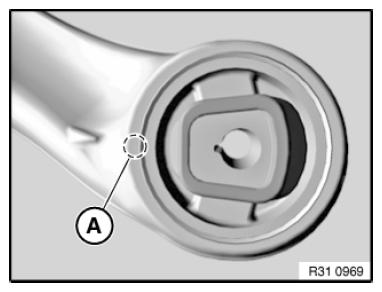

Fig 1: Identifying Trailing Link Punched Mark Area

Courtesy of BMW OF NORTH AMERICA, INC.

Using a press and special tools 33 3 322 and 31 3 032 , press rubber mount out of tension strut.

NOTE: Special tool 33 3 322 must be exactly flush with rubber mount bush.

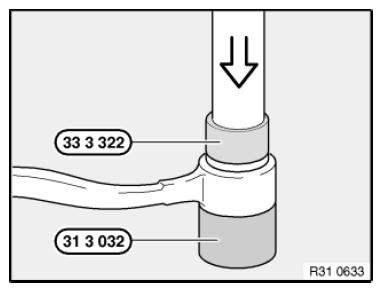

Fig 2: Pressing Rubber Mount Out Of Tension Strut Using Press And Special Tools (33 3 322) And (31 3 032)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Keep rubber mount and bush in tension strut clean and free from grease.

Align rubber mount using notch to marking on trailing link and press in.

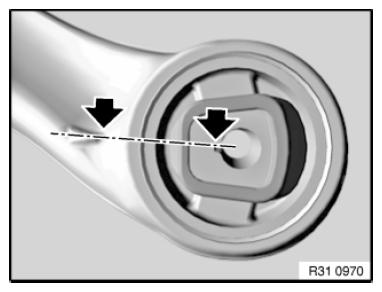

Fig 3: Locating Rubber Mount To Trailing Link Alignment Points

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Protrusion (A) equally large.
