Adjusting normal position
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of BMW OF NORTH AMERICA, INC.
Installation note:

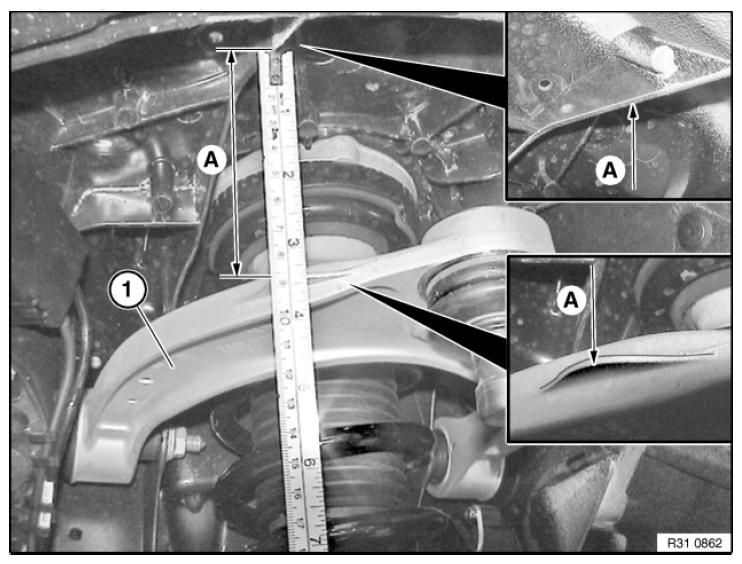

The graphic shows the left wishbone.
The protrusion is missing on the right side. Measure to the middle of the wishbone.
Secure wishbone (1) to body vertically to dimension (A) = 90 mm.
