Left support bearing

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Position mark "LEFT" on arrow at support bearing

See also REPLACING SPRING STRUT!

WARNING: Do not compress coil spring to full extent.
Coils of coil spring must be located completely in recesses of special tools 31 3 351 !

Tension coil spring.

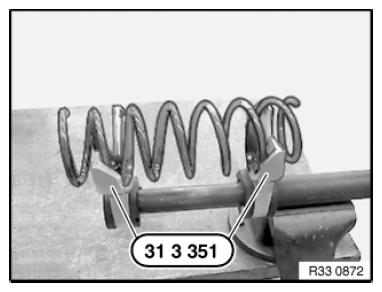

Fig 1: Tensioning Coil Spring Using Special Tool (31 3 351)

Courtesy of BMW OF NORTH AMERICA, INC.

Further assembly:

See REPLACING FRONT LEFT OR RIGHT SPRING STRUT
