31 60 535 Replacing two gaiters on output shaft(s) (output shaft(s) removed): Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Grip output shaft (1) in vice with aluminium clamping jaws.

NOTE: 2 = Joint, wheel side
3 = Joint, transmission side

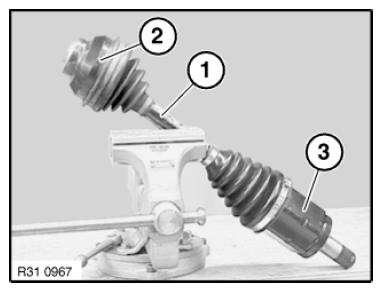

Fig 1: Fitting Output Shaft In Vice With Aluminium Clamping Jaws

Courtesy of BMW OF NORTH AMERICA, INC.
