31 51 020 Replacing shaft seal for right output shaft: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove RIGHT OUTPUT SHAFT

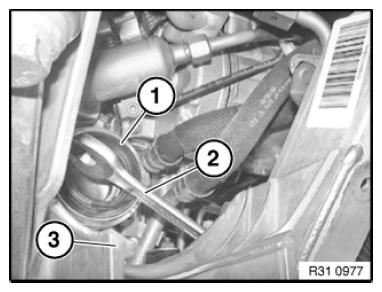

Lever radial shaft seal (1) with an open-end spanner (2) out of bearing support (3).

Fig 1: Removing Radial Shaft Seal From Bearing Support Using Open-End Spanner

Courtesy of BMW OF NORTH AMERICA, INC.
