Observe the following trolley-jack-related instructions
WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

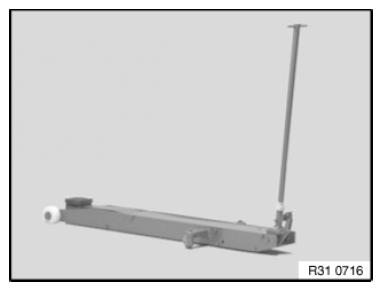

- Only trolley jacks sold or approved by BMW, with a rubber plate on their mounting, may be used!
- Trolley jacks must be regularly serviced and always checked for functional reliability before they are used!
- Check the rubber plate on the trolley jack prior to each use, replacing if necessary.
IMPORTANT:
All-wheel drive vehicles may only be raised with the stiffening plate fitted on the front axle!
Raising directly on the front axle support without stiffening plate is not permissible!
Raising directly on the front axle support without stiffening plate is not permissible!
WARNING:

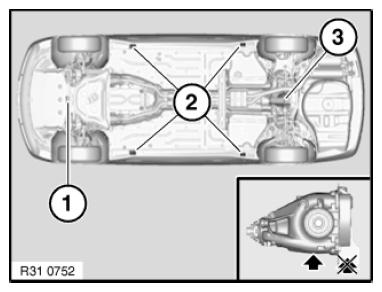

The vehicle may be raised with a trolley jack only
at the following mounting point!
- Car jacking point
- Side car jacking points
- Rear axle final driveNOTE: It is not permitted to raise the vehicle at the rear differential cover!
Risk of damage!

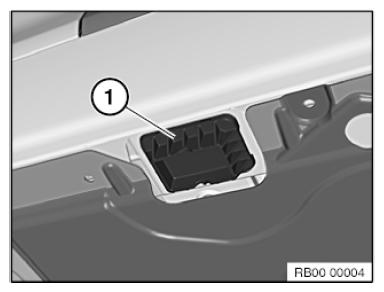

Jacking point (1) must be present!
Align the rubber plate on the trolley jack to the jacking point (1) in such a way that there is no contact to adjacent components and that they are therefore not damaged.
