31 51 015 Replacing shaft seal for left output shaft: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

REMOVE left output shaft.

Lever shaft seal (1) out of front axle differential (3) with a fork wrench (2).

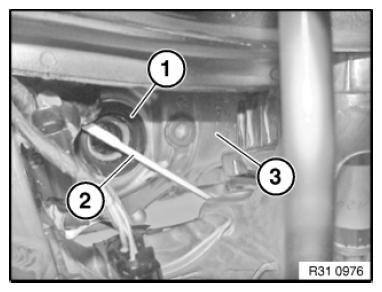

Fig 1: Removing Shaft Seal From Front Axle Differential Using Fork Wrench

Courtesy of BMW OF NORTH AMERICA, INC.
