32 21 231 Replacing (removing and installing) left or right track rod: Notes

WARNING: This page is about a different car, the 2011 BMW 750xi, 2011 BMW 750Lxi, 2010 BMW 750xi, and 2010 BMW 750Lxi. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required

32 3 220

IMPORTANT: The steering box must be replaced if the polished surface of the rack is damaged (e.g. by corrosion)!

Necessary preliminary tasks:

Remove stiffening plate (only M5)
Remove TRACK ROD END FROM SWIVEL BEARING

Remove GAITER FROM STEERING BOX and slide back

IMPORTANT: To avoid damage to rack and to suspension mounting, move rack in as far as possible.

Unscrew track rod with special tool 32 3 220 from rack of steering box.

Installation note:

Clean rack.

Check surface of rack for damage (e.g. corrosion).

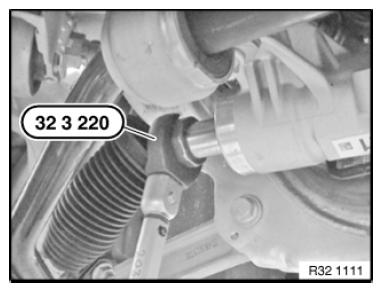

Fig 1: Removing Track Rod Using Special Tool 32 3 220

Courtesy of BMW OF NORTH AMERICA, INC.

Grease rack.

(grease: Calypsol SF-3-131-TMM 3 ; BMW part number 83 23 9 407 857 ; 100 g tube)

Tightening torque 32 21 1AZ .
